P6.67 outdoor front access led screen

Release Time：2023-04-17 03:01:35 View：180

Product Features

SMD outdoor front&back access led display

✅ Multi Function: aluminum cabinet for rental,iron cabinet for fixed

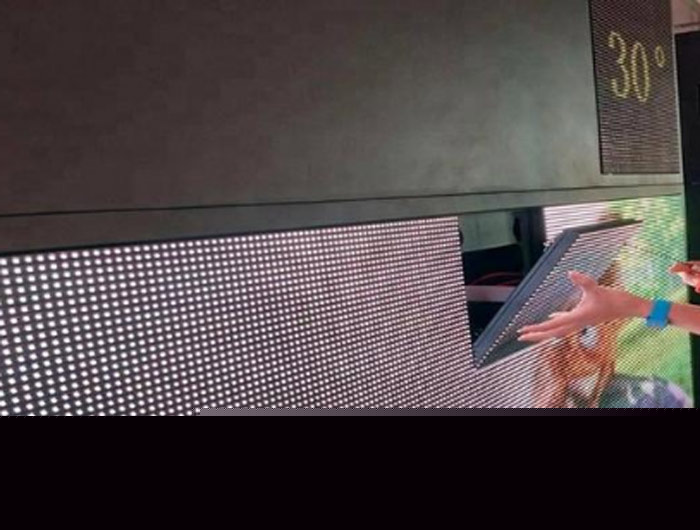

✅ Front&back access :take it out directly from the front and back
✅ IP65 waterproof Standard cabinet
✅ Easy installation
✅Thin and light:whicn can reduce the delivery cost and installation cost

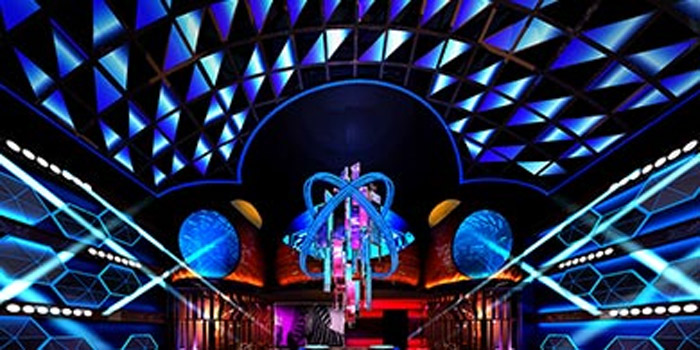

Applications

P6.67 led outdoor video cabinets widely used in Rental or fixedl without back space for structure body or maintaining

Technical Index

P6.67 outdoor rental led video wall

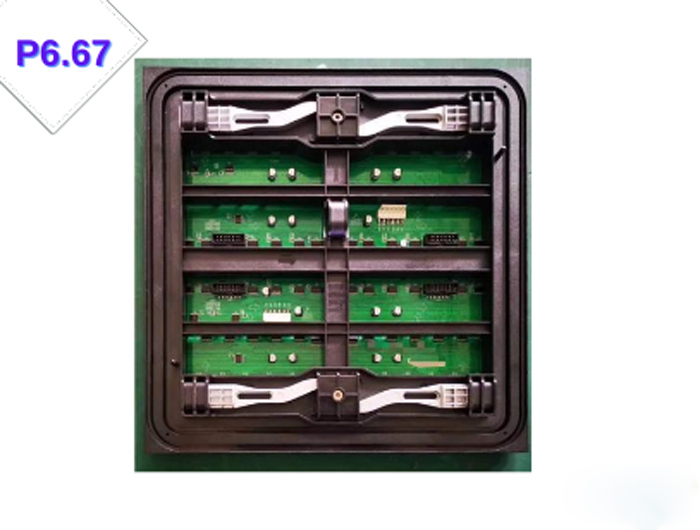

Led module	Pixel Pitch	6.67mm
	Pixel Configuration	SMD2727
	Module Resolution	48*48dots
	Module Pixles	2304dots
	Module Size	250*250mm
LED cabinets	Cabinet Size(WHD)	50050090mm or 500100090mm
	Cabinet Resolution	9696dots or 96192
	Module Quanity	4pcs or 8 pcs
	Cabinet Pixels	9216dots or 18432
	Material	Aluminum cabinets or standard waterproof iron cabinets
whole led display	Brightness	≥5000cd/㎡
	Pixel Density	22477dots/m2
	Driving Method	1/6 scan constant current
	View Angle	120H,120V
	Optimal Viewing Distance	≥6meters
	Brightness Control	Red,Green and Blue 4096 Grade/Each
	Fresh requency	≥3840Hz
	Frame Frequency	50Hz
	Input Voltage	AC240V/50Hz
	Defects Rate	≤0.00001
	Power Consumption	Max:180W/Cabinet Average:90W/Cabinet
	Screen weight	8.5KG/Cabinet
	MTBF	>10,000 hours
	Life span	≥100,000 hours
	Protective Grade	IP65
	Temperature-operating	﹣35℃～50℃
	Humidity-operating	10%～95%
	Color depth	16 bit
	Controlling system	Nova or Colorlight(Sending Card,Receiving Cards and Hubs)
	Operating System	Windows XP/7/8/10
