P10 outdoor front access led signage

Release Time：2023-04-17 03:05:41 View：63

Product Features

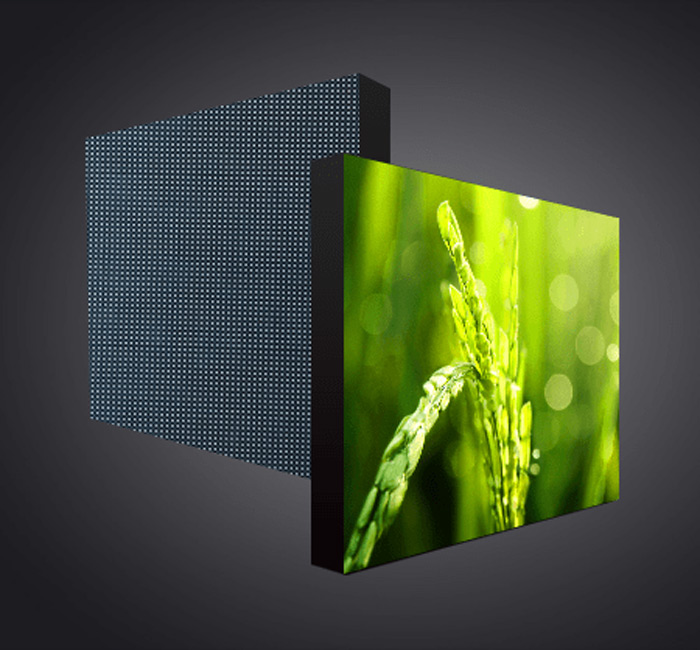

SMD outdoor front&back access led display

✅ Multi Function: aluminum cabinet for rental,iron cabinet for fixed

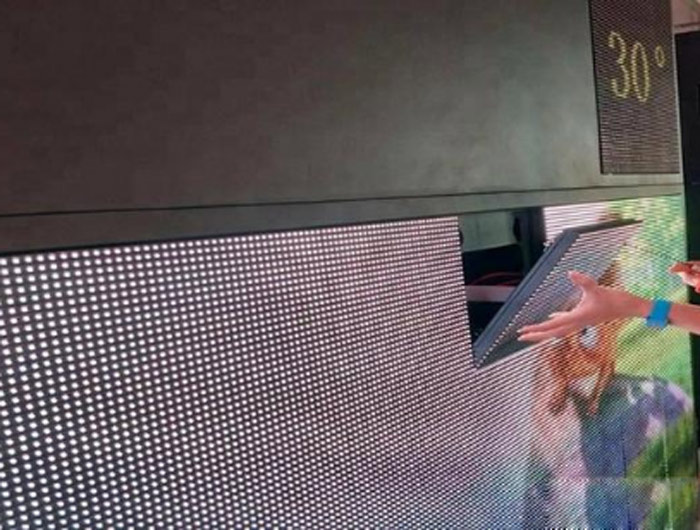

✅ Front&back access :take it out directly from the front and back
✅ IP65 waterproof Standard cabinet
✅ Easy installation
✅Thin and light:whicn can reduce the delivery cost and installation cost

Applications

P10 led outdoor video cabinets widely used in Rental or fixedl without back space for structure body or maintaining

Technical Index

P10 outddoor rental led video wall

Led module	Pixel Pitch	10mm
	Pixel Configuration	SMD3535
	Module Resolution	32*32dots
	Module Pixles	1024dots
	Module Size	250*250mm
LED cabinets	Cabinet Size(WHD)	50050090mm or 500100090mm
	Cabinet Resolution	6464dots or 64128
	Module Quanity	4pcs or 8 pcs
	Cabinet Pixels	6400dots or 12800
	Material	Aluminum led cabinet or standard waterproof iron cabinet
whole led display	Brightness	≥5000cd/㎡
	Pixel Density	10000dots/m2
	Driving Method	1/2 scan constant current
	View Angle	120H,120V
	Optimal Viewing Distance	≥10meters
	Brightness Control	Red,Green and Blue 4096 Grade/Each
	Fresh requency	≥3840Hz
	Frame Frequency	50Hz
	Input Voltage	AC240V/50Hz
	Defects Rate	≤0.00001
	Power Consumption	Max:180W/Cabinet Average:90W/Cabinet
	Screen weight	8.5KG/Cabinet
	MTBF	>10,000 hours
	Life span	≥100,000 hours
	Protective Grade	IP65
	Temperature-operating	﹣35℃～50℃
	Humidity-operating	10%～95%
	Color depth	16 bit
	Controlling system	Nova or Colorlight(Sending Card,Receiving Cards and Hubs)
	Operating System	Windows XP/7/8/10
