DC24V 1.5W LED pixel light

 Features：

1. Small size, can be combined to install;

2. Signal transmission using parallel code without parallel and DMX512 control technology, a single lamp does not affect the overall damage;

3. The use of high-grade imported lamp beads, with high brightness, good stability;

4. Bayer PC shell material used in Germany, ten years does not change color; light-emitting surface with hemispherical design with self-cleaning function;

5. Using AB synthetic resin sealing irrigation, surface hardness, impact resistance, high water level;

6. Wire temperature -40 ℃ ~ 80 ℃, pressure 300V, flame retardant VW-0;

7. Perforation, screw and aluminum, the unique cross two-way wire fixed installation.



Applications：

Compact small single-pixel LED light source, small and exquisite, flexible combination of different density light string;

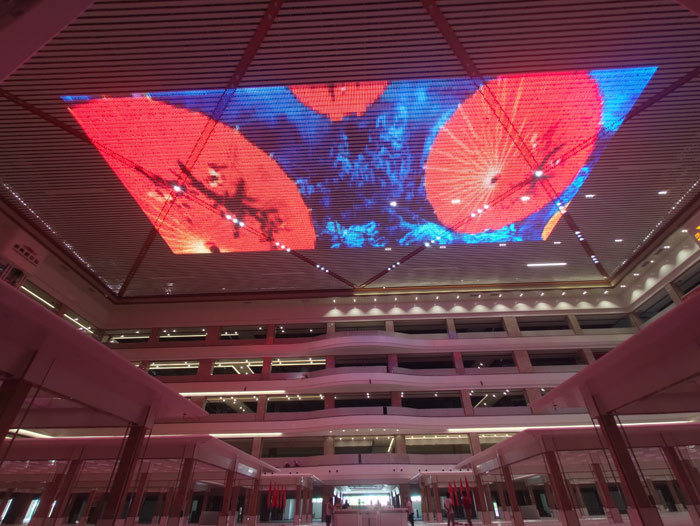

Commonly used in large-scale comprehensive commercial curtain wall, lintel, display video,

animation, graphic, lighting color change effect.

Parameters：

Model No	XH-H5006P24
Lamp Brand	Minvol
LED Type	Epistar
LED Type	3535
Lamp Size	Φ50*24.2mm
Working Voltage	DC24V
Power	1.5W
Color	RGB
Light intensity	36000mcd
Lighting efficiency	100LM/W
Lighting Angle	120°
Shell Material	Unti-Fire PC+ Silicone
Shell Color	Mist
Wire Position	Bottom
Spec	20pcs/chain
Controlling Protocol	DMX512
Lifespan	30000h
Certificates	CE、FCC、SASO
Working Temp	-40℃～60℃
Protection	IP67

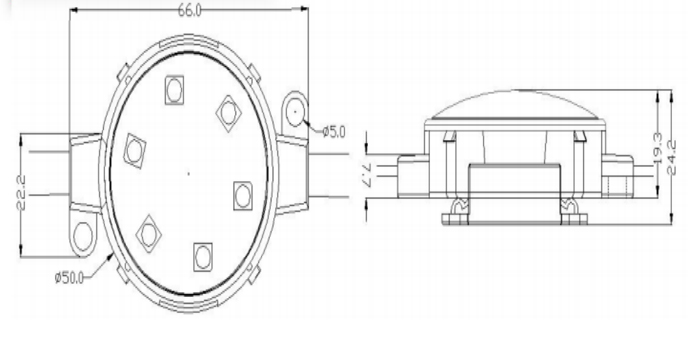

Dimension

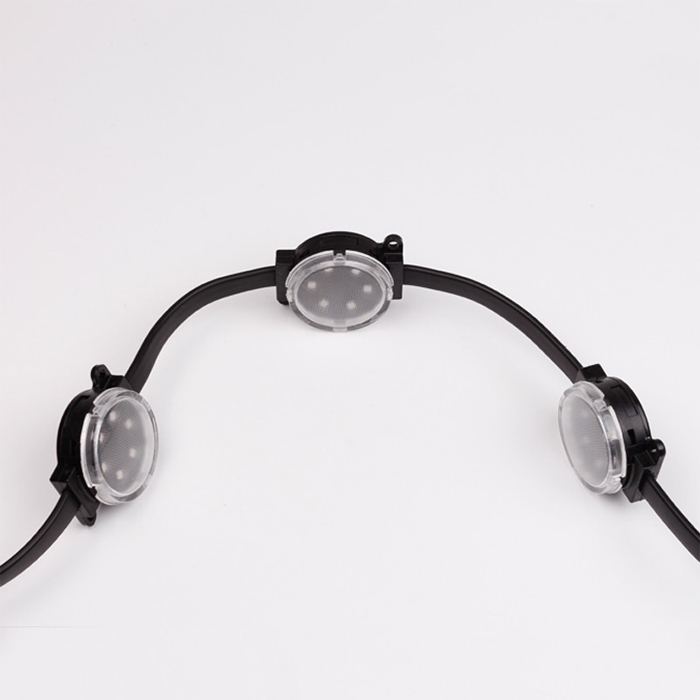

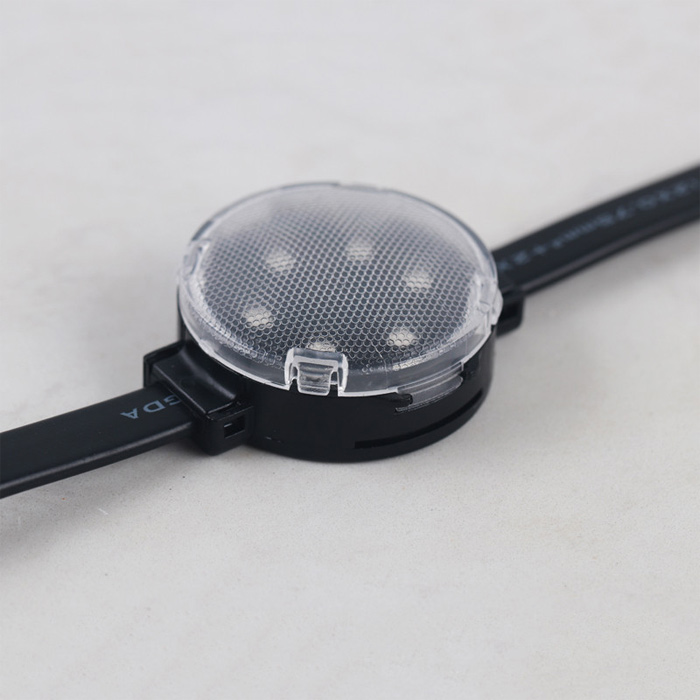

Product details
