Product
DC24V 5W LED pixel light
Parameter
Good quality LED Linear Light, green products with low consumption
Constant currency, long lifespan.
Anti-static, thunder proof.
Working Temperature:-40℃~60℃.
Standard IP67 protective design,meet requirements for severe circumstance.
Material
Adopt good quality aluminum for the body,two times oxidation treatments.
Connector plated by gold, lowest electric resistance, high antioxidant ability
High ability of water proof and air corrosion, the adaptability of high temperature is strong.
Fixed by stainless screw with beautiful appearance and ,rust proof.
Application

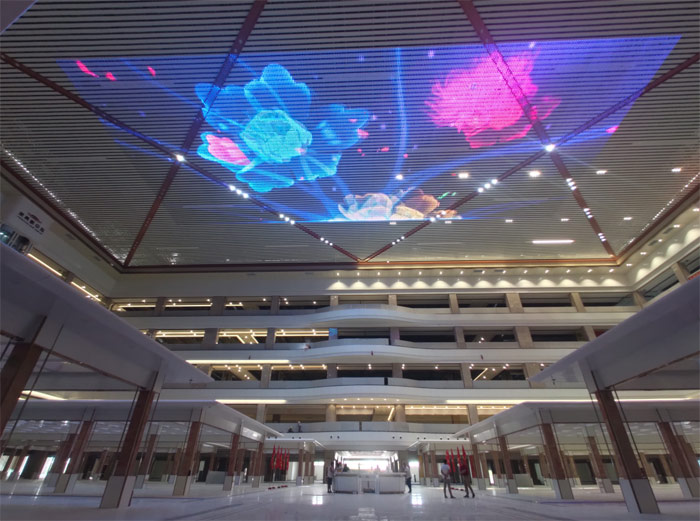

Suitable for indoor and outdoor of Hotel, Restaurant, Residential building,etc decoration.
Specification
Size |
FX 008 |
Outshell Material |
Aluminum alloy body,imported PC cover |
LED light qty |
18PCS/ SMD5050 |
Unit weight |
150g/pcs |
Dimension |
&125mm×H80mm |
Protective Level |
IP66 |
Driver method |
DMX512 |
Color effects |
Full colors,single color |
LED Color |
RGB, single color |
Input volt |
DC24V |
Power |
5W |
Temperature |
-30℃~50℃ |
Lighting source |
CREE, Epistar |
Working life |
≥50,000h |
Certificate |
CE ROHS |

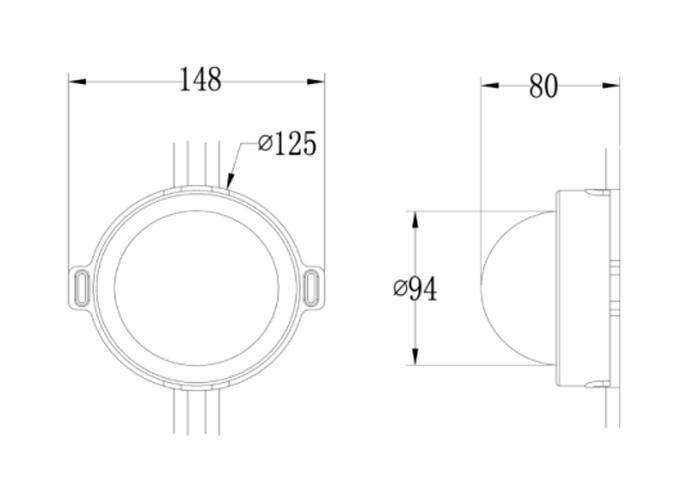

Dimension

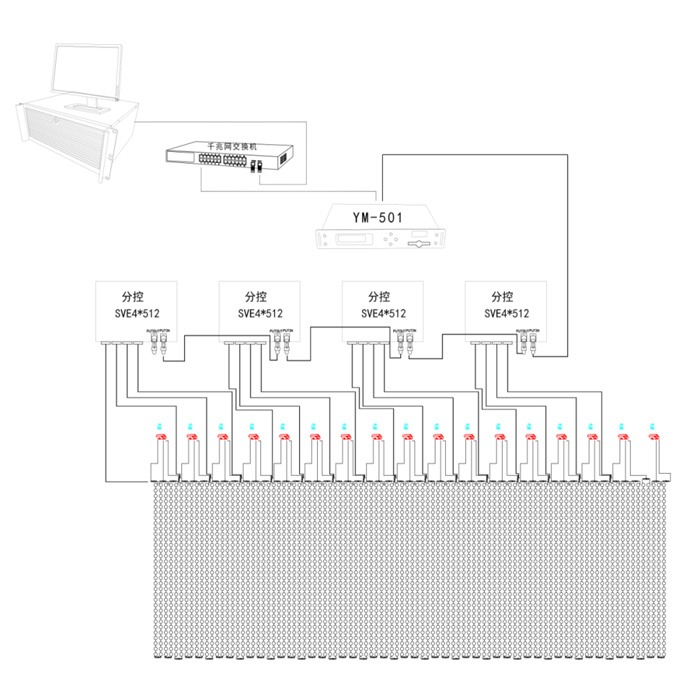

Wiring diagram

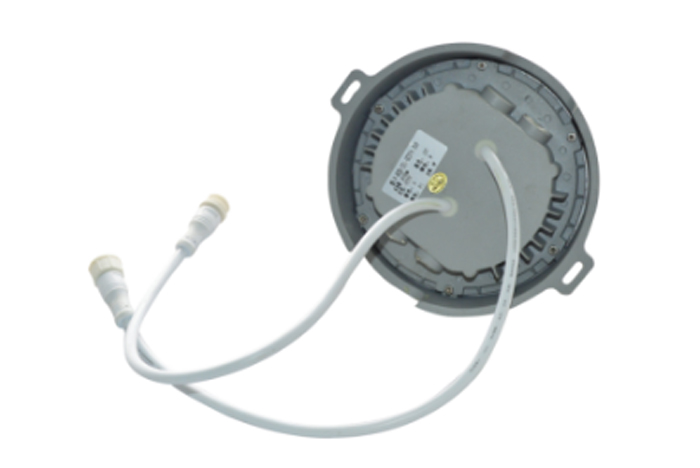

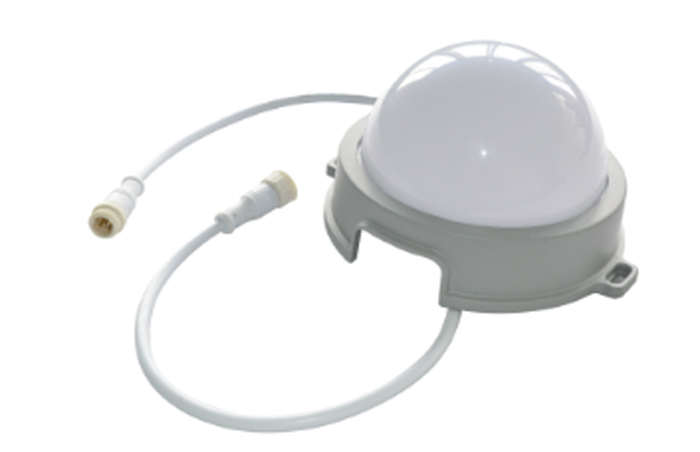

Product details
