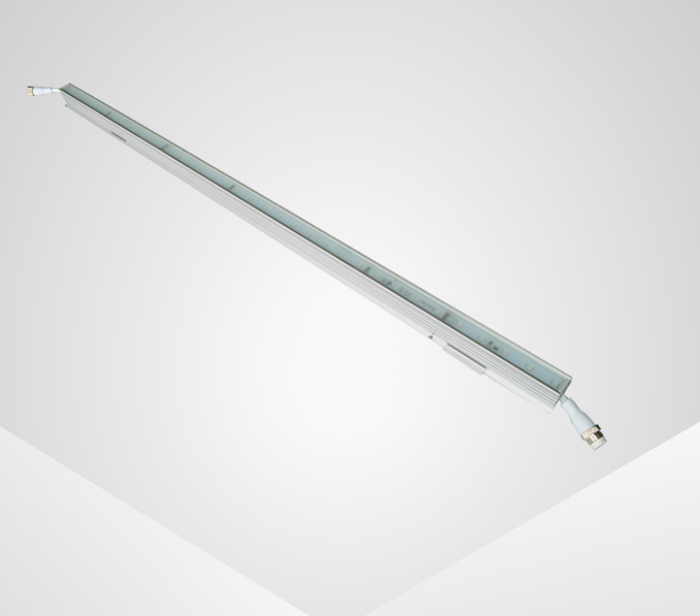

DC24V 25X36 LED linear light

Parameter

 Good quality LED Linear Light, green products with low consumption

 Constant currency, long lifespan.

 Anti-static, thunder proof.

Extreme long loading length, one port max load 64 units (RGB 8 pixels), middle no need add any power supply

and signal amplifier, save labor installation cost, cable cost.

 Working Temperature：-40℃～60℃。

 Standard IP67 protective design，meet requirements for severe circumstance.

Materials

Adopt good quality aluminum for the body，two times oxidation treatments.

 Connector plated by gold, lowest electric resistance, high antioxidant ability

 High ability of water proof and air corrosion, the adaptability of high temperature is strong.

 Fixed by stainless screw with beautiful appearance and ，rust proof.

Application

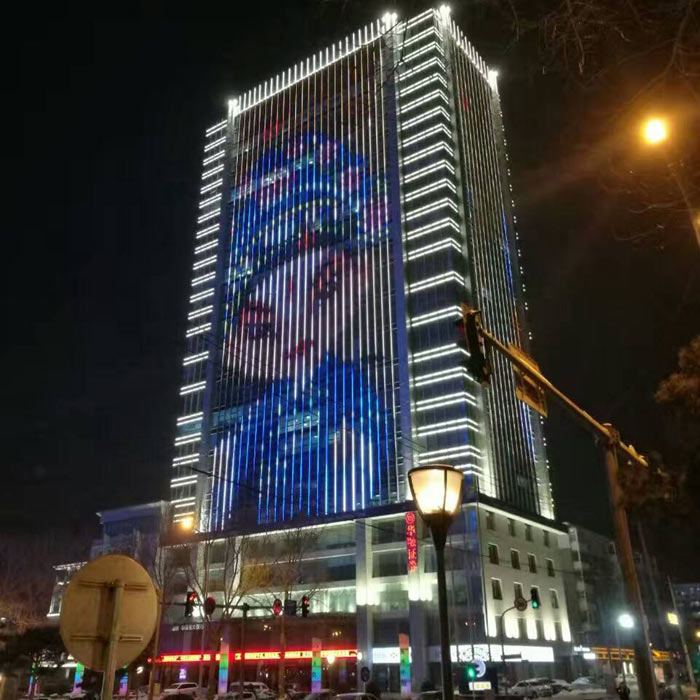

Suitable for indoor and outdoor wall washing and lighting, outline decoration.

Specification

Size	MH-Y-RGB-D008-DC024-012-25X36X1000
Body material	Aluminum alloy body, Tempered glass cover, spray static paint
Dimension	W25mm×D36mm×1000mm
Waterproof	IP65
Control method	DMX512
Color effect	Single, full color
LED color	RGB change, Red, Yellow, Blue, Green, White
Beam angle	5、15、30、5、60、90、120 degree
Input volt	DC24V
Power	1W*48pcs=12W
LED chip	Epistar
Working life	≥50,000h
Environment temperature	-40℃~60℃
Relate certificate	CE  RoHS

Dimension

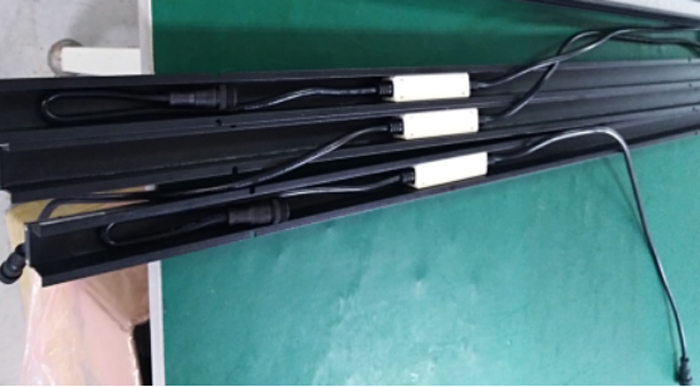

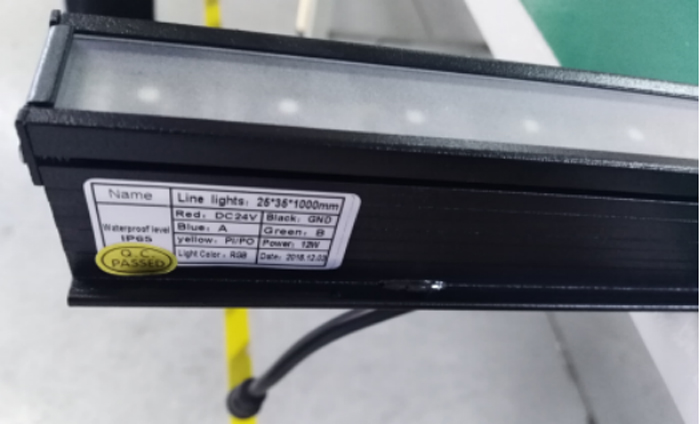

Product details
