DC24V 28X50 LED linear light
|
Parameter |
Good quality LED Linear Light, green products with low consumption
Constant currency, long lifespan.
Anti-static, thunder proof.
Working Temperature：-40℃～60℃。
Standard IP67 protective design，meet requirements for severe circumstance.
|
Materials |
Adopt good quality aluminum for the body，two times oxidation treatments.
Connector plated by gold, lowest electric resistance, high antioxidant ability
High ability of water proof and air corrosion, the adaptability of high temperature is strong.
Fixed by stainless screw with beautiful appearance and ，rust proof.
Specification
Size
RY 002-C
Body material
Aluminum alloy body, Tempered glass cover, spray static paint
Dimension
28mm×50mm×1000mm
Waterproof
IP65
Control method
DMX512
Color effect
Single, full color
LED color
RGB change, Red, Yellow, Blue, Green, White
Beam angle
5、15、30、5、60、90、120 degree
Input volt
DC24V/36V
Power
1W*48pcs=12W/1W*60pcs=15W
Spot distance
3-5 meter
LED chip
Epistar
Working life
≥50,000h
Environment temperature
-40℃~60℃
Relate certificate
CE RoHS

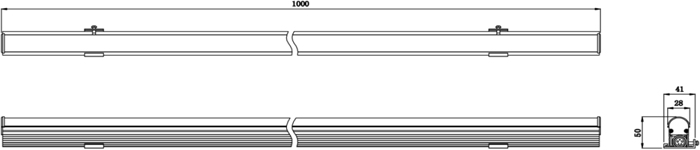

Dimension

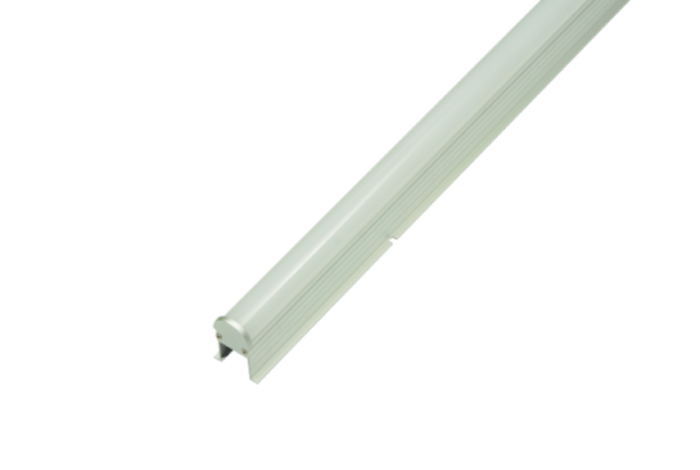

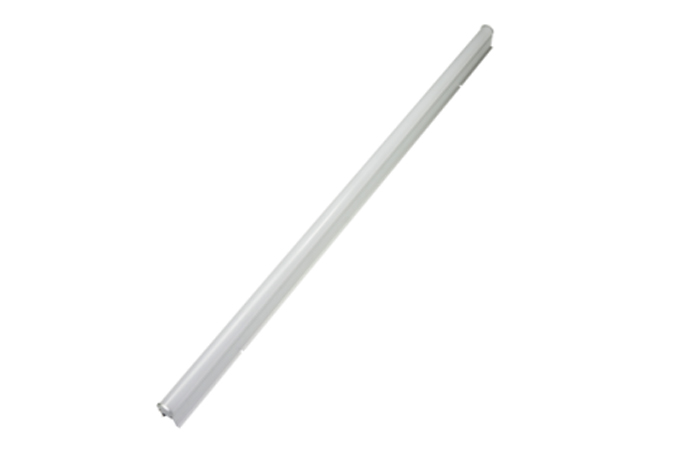

Product details
