Product

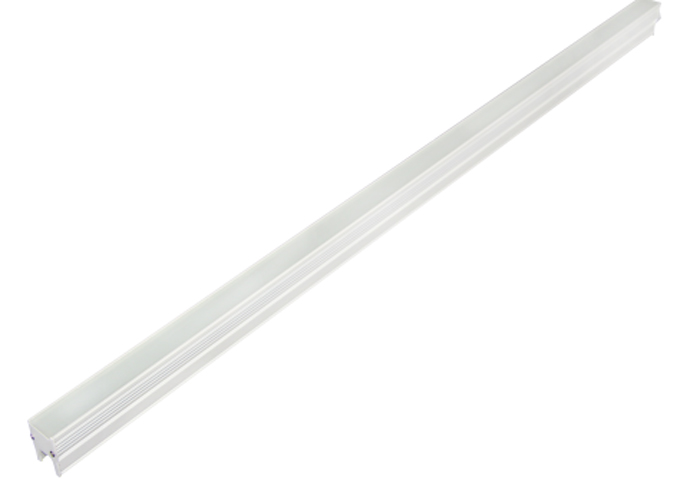

DC24V 30X47 LED linear light
Parameter |
Good quality LED Linear Light, green products with low consumption
Constant currency, long lifespan.
Anti-static, thunder proof.
Working Temperature:-40℃~60℃。
Standard IP67 protective design,meet requirements for severe circumstance.
Materials |
Adopt good quality aluminum for the body,two times oxidation treatments.
Connector plated by gold, lowest electric resistance, high antioxidant ability
High ability of water proof and air corrosion, the adaptability of high temperature is strong.
Fixed by stainless screw with beautiful appearance and ,rust proof.
Application |

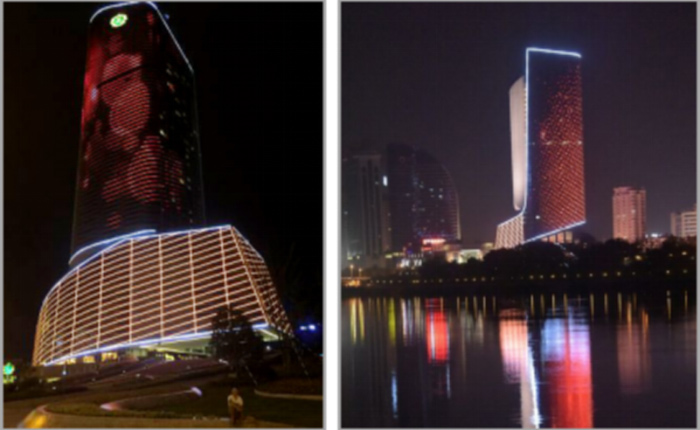

Suitable for indoor and outdoor wall washing and lighting, outline decoration.
Specification
Size
RY 005
Body material
Aluminum alloy body, Tempered glass cover, spray static paint
Dimension
30mm x 47mm x1000mm
Waterproof
IP65
Control method
DMX512
Color effect
Single, full color
LED color
RGB, RGBW, change, Red, Yellow, Blue, Green, White
Refresh frequency
>1100Hz
Input volt
DC24V/36V
Power
1W*48pcs=12W
Weight
2.8kg
LED chip
Epistar
Working life
≥50,000h
Environment temperature
-40℃~60℃
Related certificate
CE RoHS

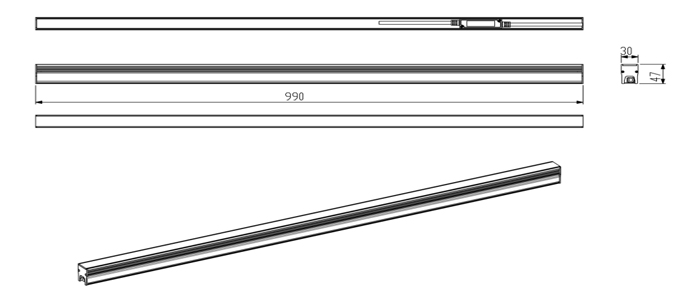

Dimension

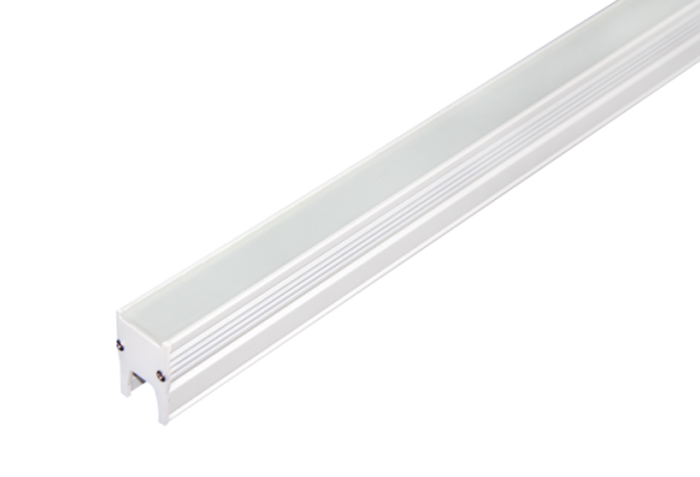

Product details
